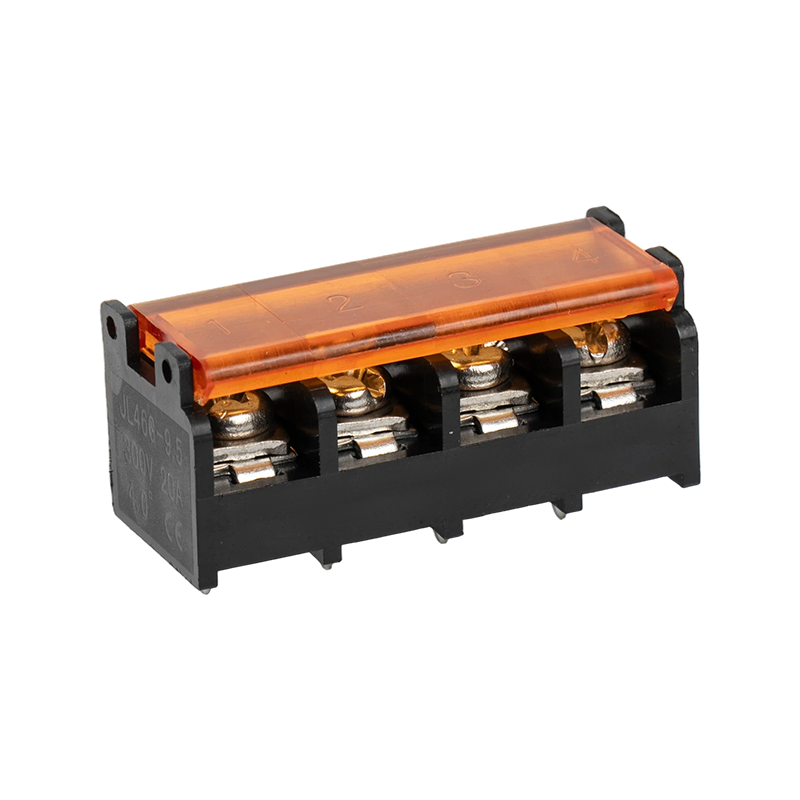

9.5mm Barrier Terminal Block JL46G

Key Advantages
Barrier design: Barrier Terminal Block JL46G provides physical isolation between adjacent terminals, preventing short circuits and enhancing safety in high-density applications.

Fixed pitch design: Dedicated 9.5mm pitch for consistent PCB layouts, ensuring reliable mounting and compatibility with standard 9.5mm headers.

Extreme current capacity: Rated at 20A (UL) / 32A (IEC) with UL 300V / IEC 750V, supporting high-power connections with 22-12AWG wires and M4.0 screws.

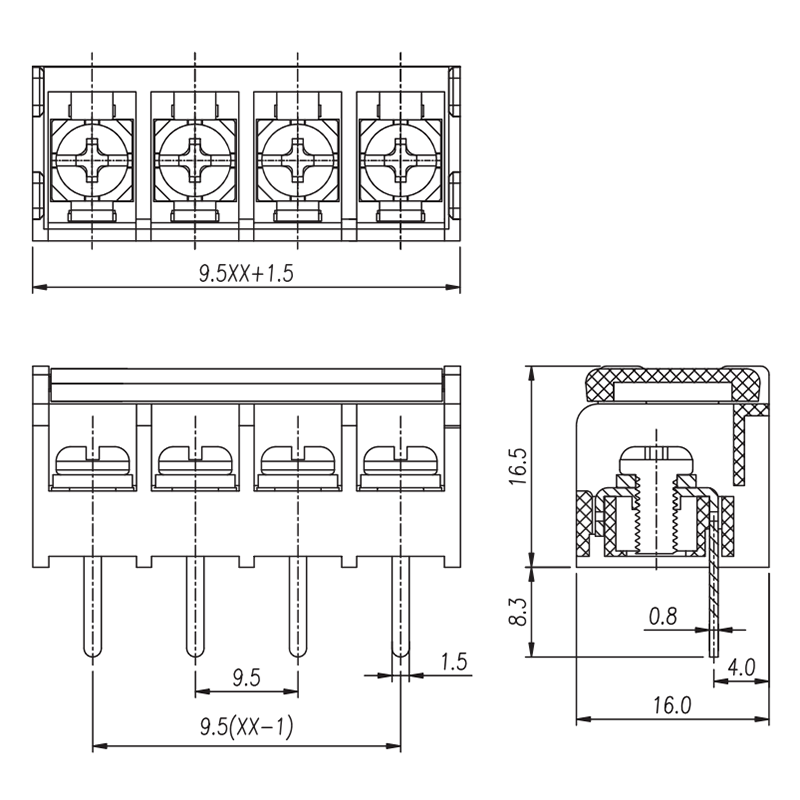

9.5mm Barrier Terminal Block JL46G's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: What is the torque specification for the 9.5mm Barrier Terminal Block JL46G?
A: The standard torque is 12.24kgf-cm (1.2Nm / 10.6Lb.in), ensuring secure and reliable wire termination for heavy-duty applications.

Q: What is the insulation resistance of this terminal block?
A: The insulation resistance is 500MΩ minimum at DC500V, ensuring excellent electrical isolation and safety.
