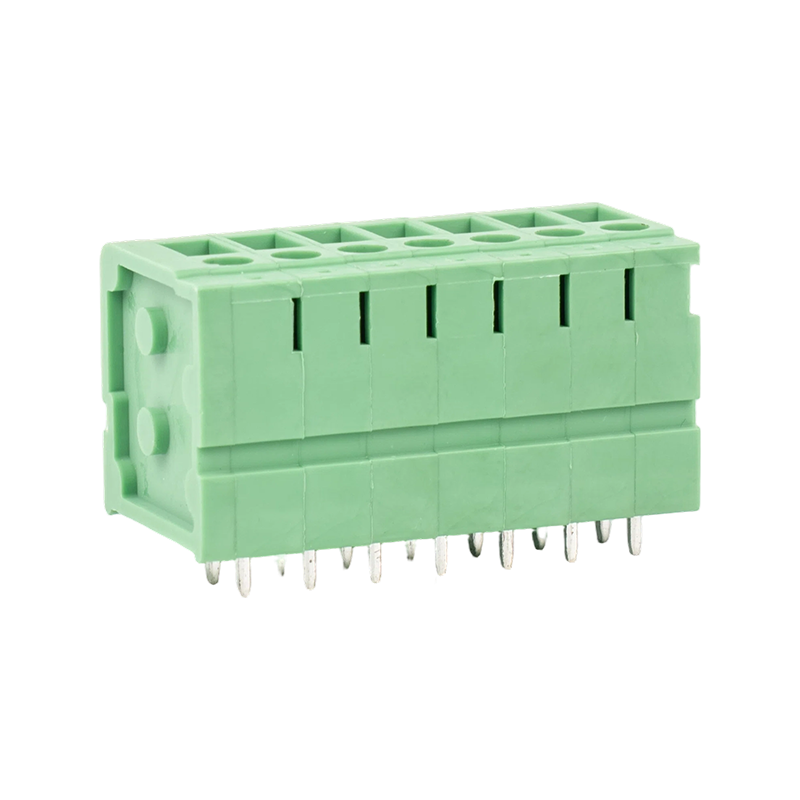

5.0mm PCB Screw Terminal Block JL105V

Key Advantages
Sliding cage technology: Features a steel sliding cage with Cr-Zn plating for smooth wire insertion and secure clamping, reducing wire damage during termination.

Fixed pitch design: PCB Screw Terminal Block JL105V dedicated 5.0mm pitch for consistent PCB layouts, ensuring reliable mounting and compatibility with standard 5.0mm headers.

High current capacity: Rated at 20A (UL) / 24A (IEC) with UL 300V / IEC 450V, supporting high-power connections with 24-12AWG wires.

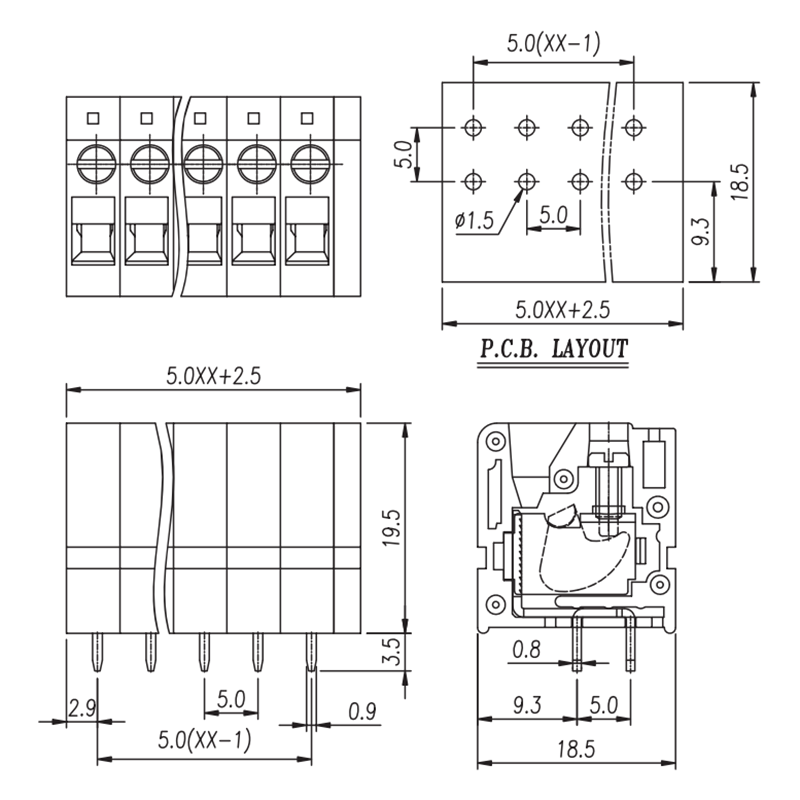

5.0mm PCB Screw Terminal Block JL105V's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: What is the torque specification for this5.0mm PCB Screw Terminal Block JL105V?
A: The standard torque is 4.08kgf-cm (0.4Nm / 3.54Lb.in), ensuring secure and reliable wire termination.

Q: What is the strip length required for this terminal block?
A: The recommended strip length is 12-13mm, ensuring proper wire insertion and secure clamping for larger-gauge wires.
