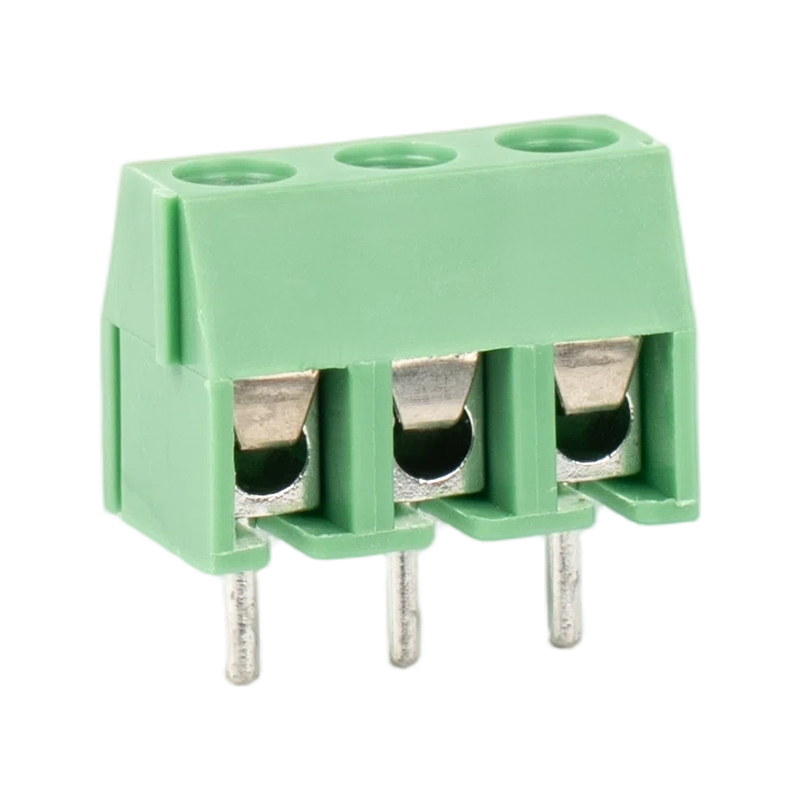

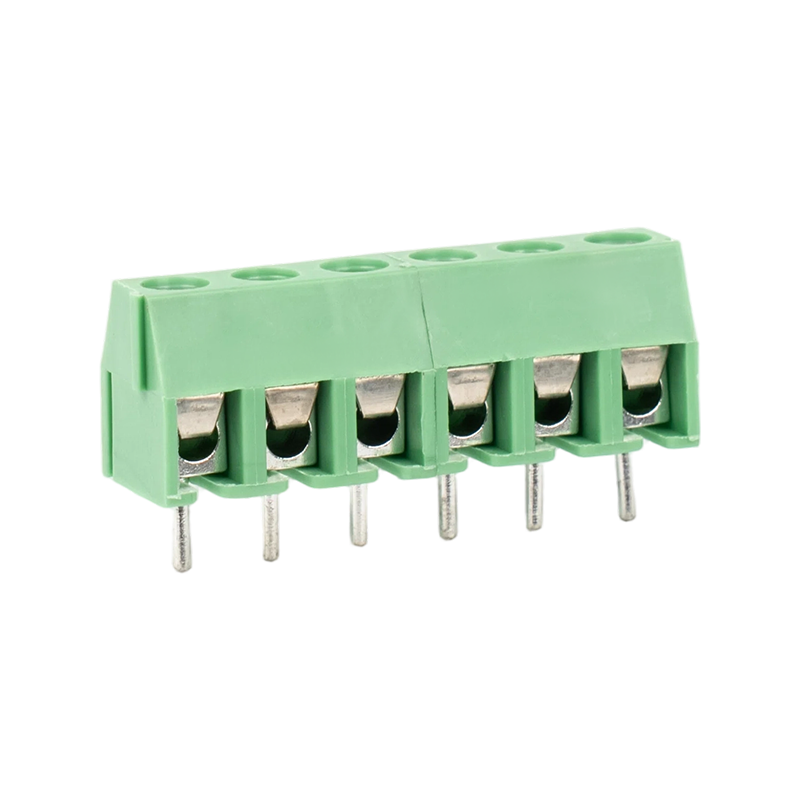

3.5/3.96mm PCB Screw Terminal Block JL350V

Key Advantages
Screw clamp technology: M2.0 steel zinc-plated screws with phosphor bronze nickel-plated shrapnel provide secure, high-retention wire termination in a compact form factor.

Dual-pitch compatibility: PCB Screw Terminal Block JL350V supports both 3.5mm and 3.96mm pitches in one series, offering flexible PCB layout options and reducing inventory SKUs.

Compact design: Ideal for space-constrained applications with rated current of 10A (UL/IEC) and voltage rating of 300V (UL) / 250V (IEC).

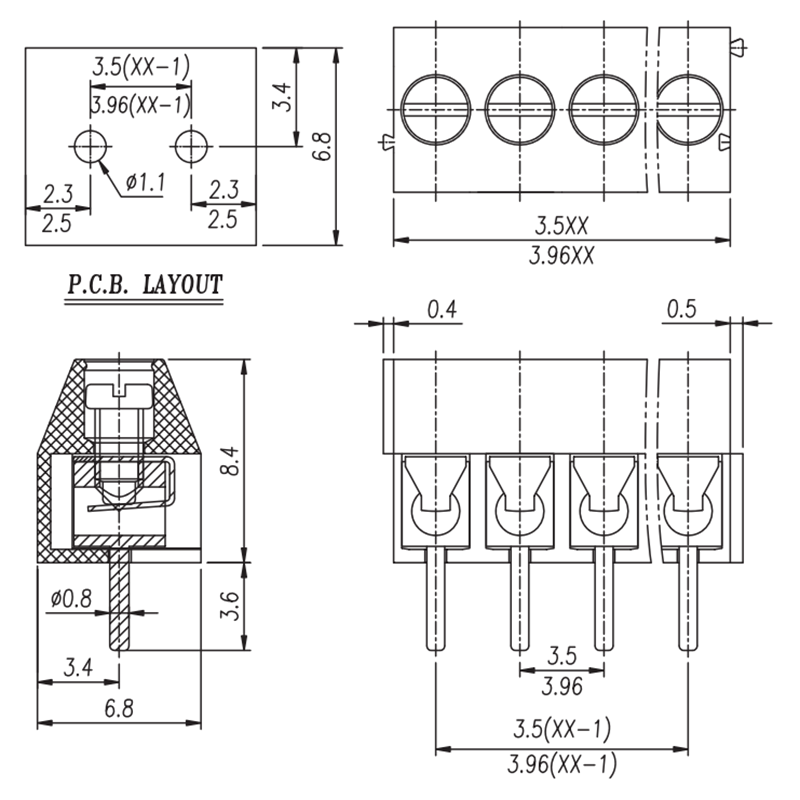

3.5/3.96mm PCB Screw Terminal Block JL350V's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: What is the torque specification for the M2.0 screw?
A: The standard torque is 2.04kgf-cm (0.2Nm / 1.77Lb.in), ensuring secure and reliable wire termination.

Q: What wire gauge range does this 3.5/3.96mm PCB Screw Terminal Block JL350V support?
A: It accepts 24-18AWG (1.0mm²) wires, suitable for small signal and low-current connections.
