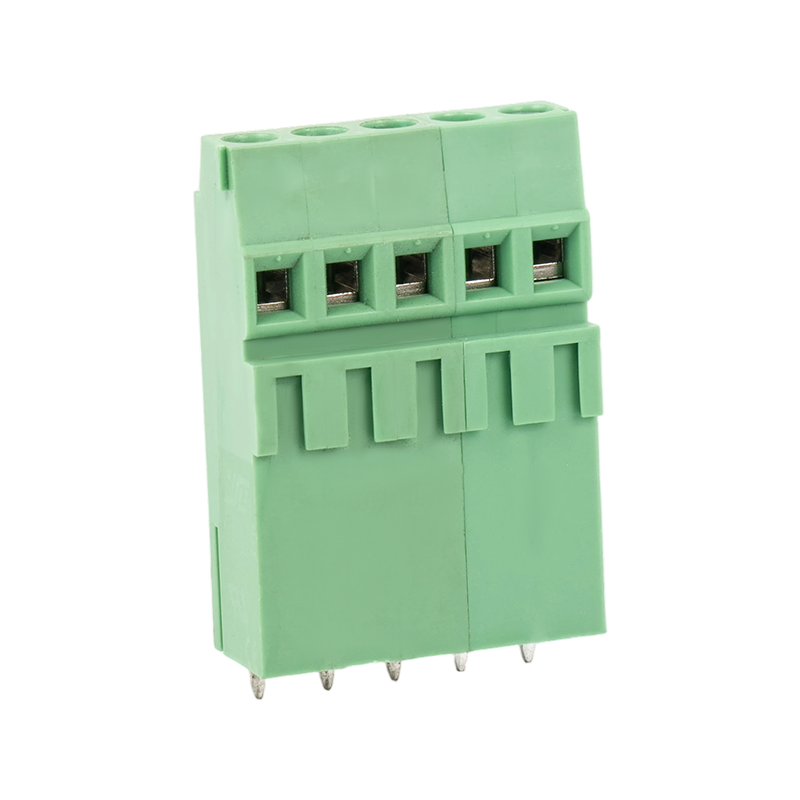

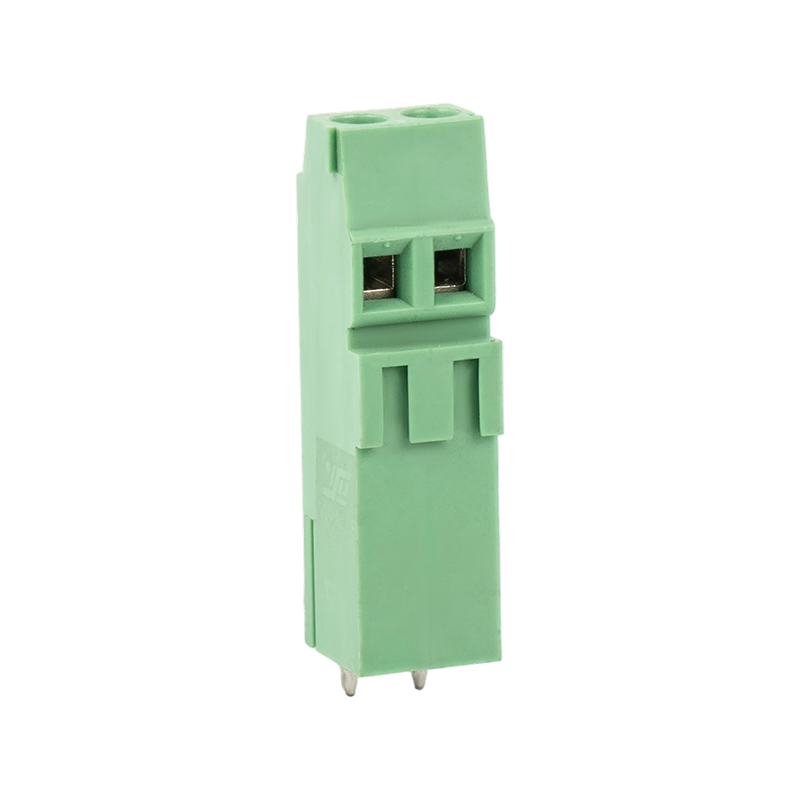

5.0/5.08mm PCB Screw Terminal Block JL500HH

Key Advantages
Screw clamp technology: M2.5 steel zinc-plated screws with brass nickel-plated cages provide secure, high-retention wire termination.

Dual-pitch compatibility: PCB Screw Terminal Block JL500HH supports both 5.0mm and 5.08mm pitches in one series, offering flexible PCB layout options and reducing inventory SKUs.

Wide operating temperature: Rated from -40℃ to +105℃ with +250℃/5sec soldering tolerance, suitable for various manufacturing processes.

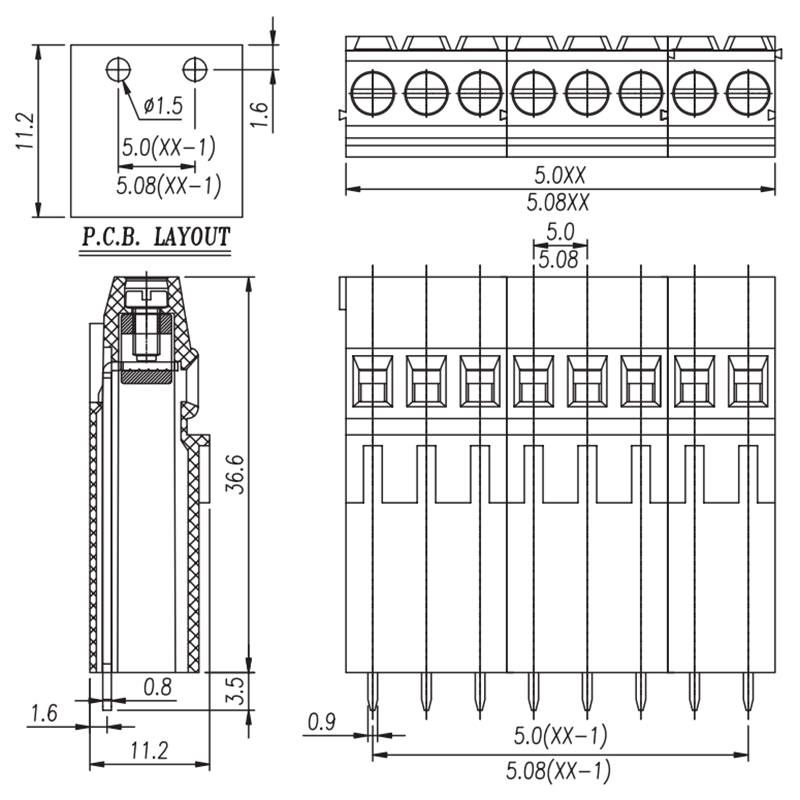

5.0/5.08mm PCB Screw Terminal Block JL500HH's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: What is the torque specification for the M2.5 screw?
A: The standard torque is 4.08kgf-cm (0.4Nm / 3.54Lb.in), ensuring secure and reliable wire termination.

Q: What wire gauge range does 5.0/5.08mm PCB Screw Terminal Block JL500HH support?
A: It accepts 30-14AWG (2.5mm²) wires, covering a wide range from signal to medium-power connections.
