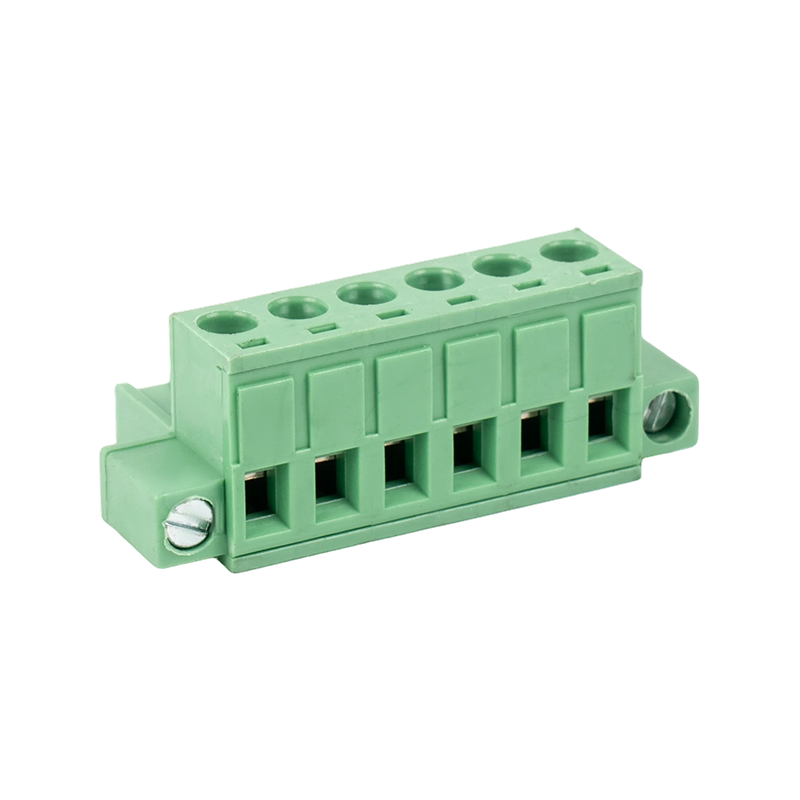

5.0/5.08mm Pluggable Terminal Block JL2EDGKM

Key Advantages
Dual-pitch compatibility: Supports both 5.0mm and 5.08mm pitches in Pluggable Terminal Block JL2EDGKM, offering flexible PCB layout options and reducing inventory SKUs.

High current capacity: Rated at 15A (UL) / 20A (IEC) with UL 300V / IEC 450V, supporting high-power applications with M3.0 screw for secure termination.

Wide wire range: Accepts 28-14AWG (2.5mm²) wires, suitable for both signal and power connections.

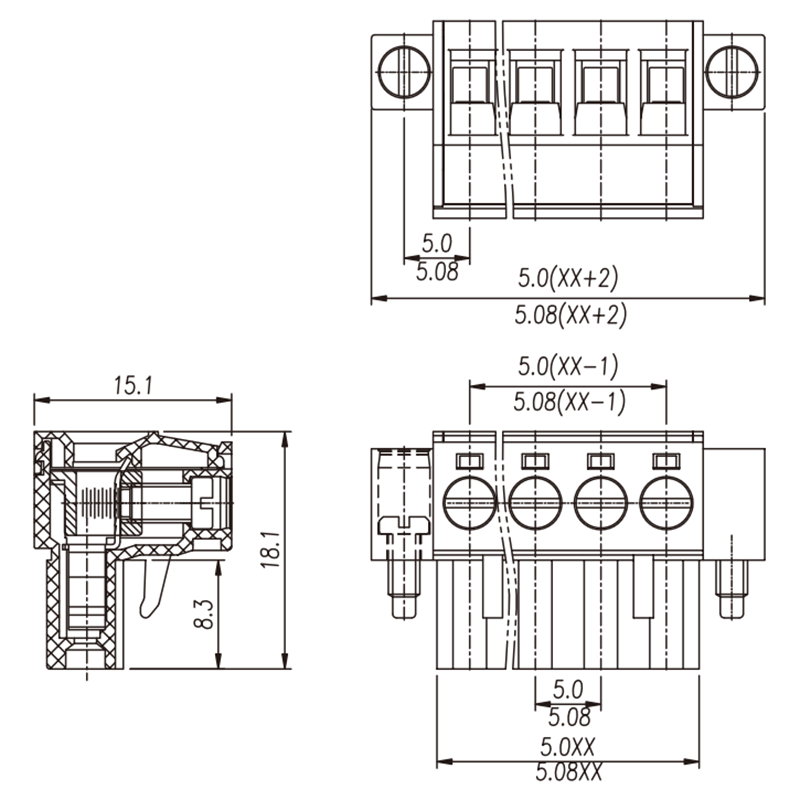

5.0/5.08mm Pluggable Terminal Block JL2EDGKM's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: What is the torque specification for the M3.0 screw?
A: The standard torque is 5.10kgf-cm (0.5Nm / 4.43Lb.in), providing secure and reliable wire termination for high-current applications.

Q: What is the maximum operating temperature of this 5.0/5.08mm Pluggable Terminal Block JL2EDGKM?
A: It operates from -40℃ to +105℃ and can withstand +250℃ for 5 seconds during soldering processes, ensuring durability in harsh environments.
