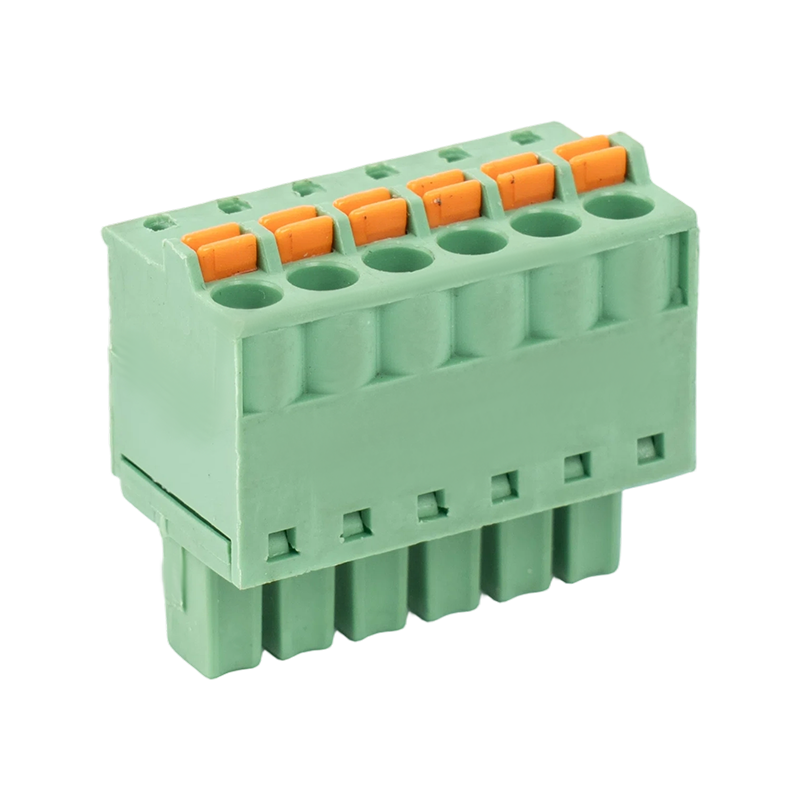

3.5/3.81mm Pluggable Terminal Block JL15EDGKD

Key Advantages
Dual-pitch compatibility: Pluggable Terminal Block JL15EDGKD supports both 3.5mm and 3.81mm pitches in one series, offering flexible PCB layout options and reducing inventory SKUs.

Spring-cage technology: Stainless steel shrapnel enables tool-free wire insertion and provides secure, vibration-resistant clamping.

Wide wire range: Accepts 28-16AWG (1.5mm²) wires, suitable for both signal and power connections.

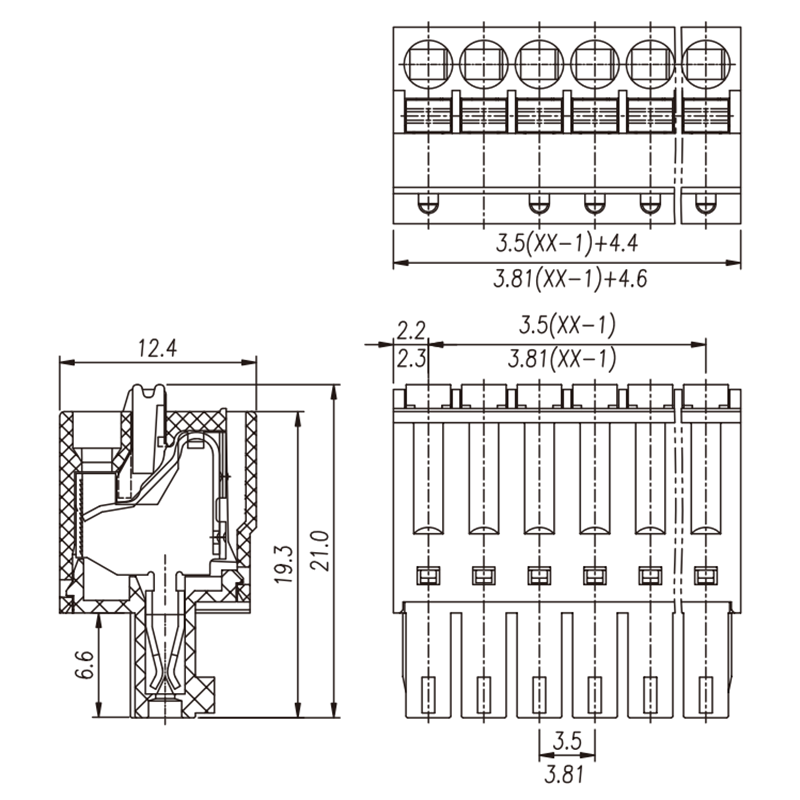

3.5/3.81mm Pluggable Terminal Block JL15EDGKD's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: Does this terminal block require a tool for wire termination?
A: No, the stainless steel shrapnel design allows for tool-free wire insertion. Simply push the wire in and the spring secures it automatically.

Q: What is the current rating of this 3.5/3.81mm Pluggable Terminal Block JL15EDGKD?
A: It is rated at 8A under UL standards and 7A under IEC standards, with a voltage rating of 300V (UL) and 250V (IEC).
