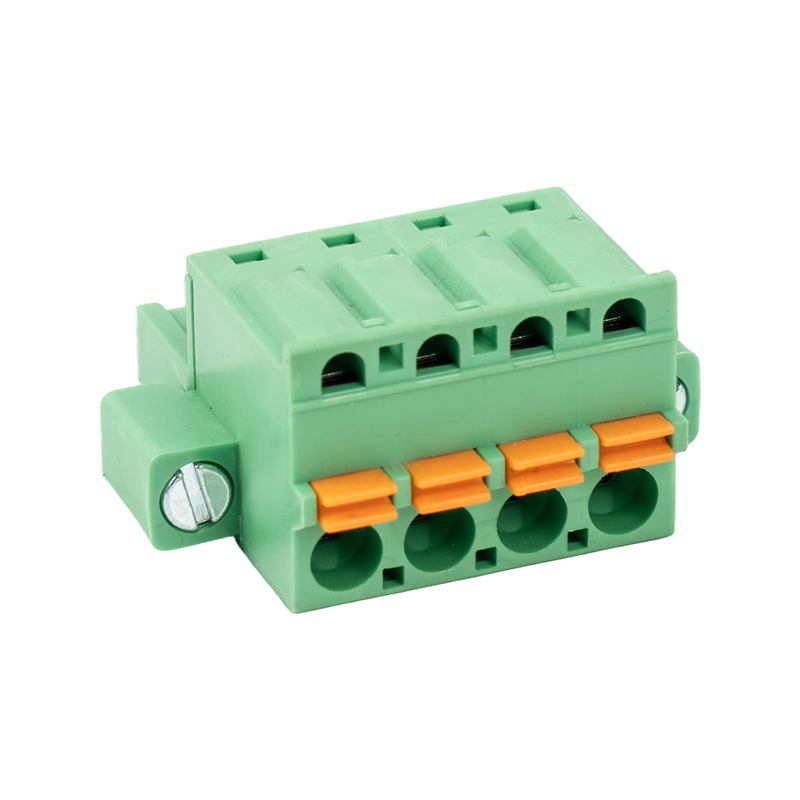

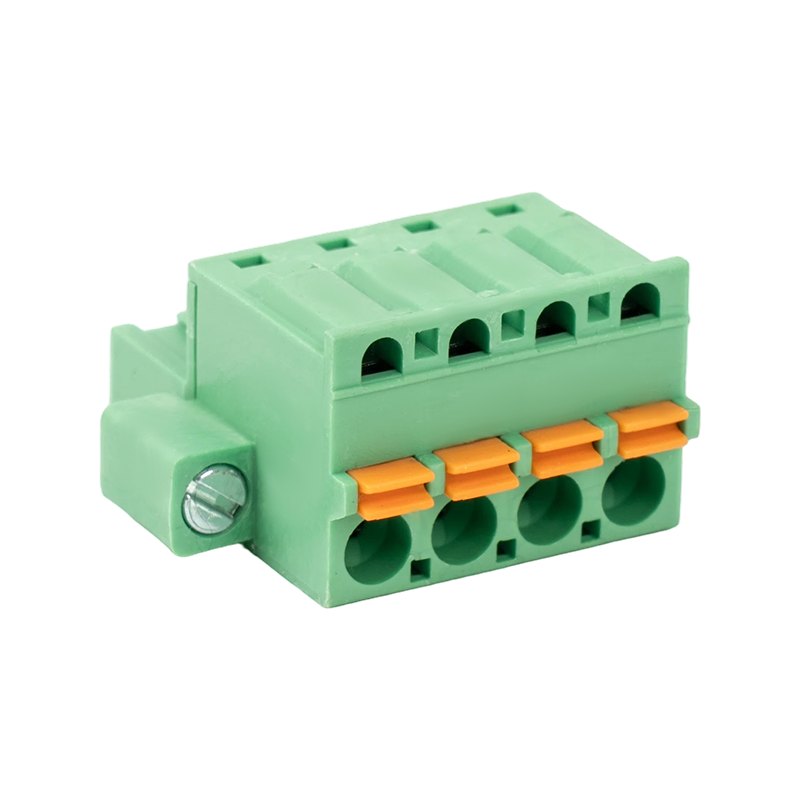

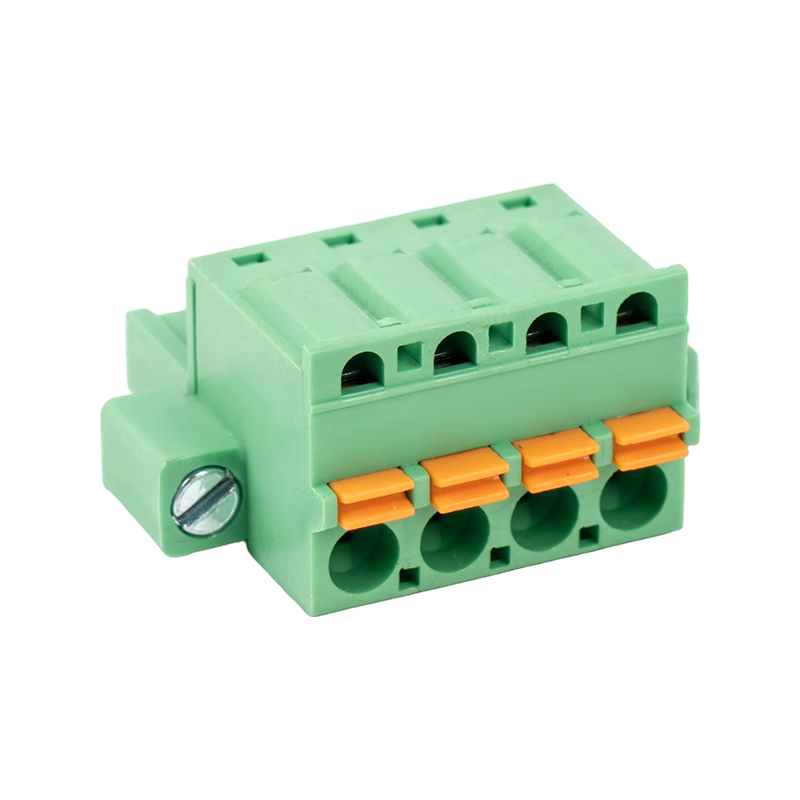

5.08mm Pluggable Terminal Block JL2EDGKDM

Key Advantages
Fixed pitch design: Pluggable Terminal Block JL2EDGKDM dedicated 5.08mm pitch for consistent PCB layouts, ensuring reliable mounting and compatibility with standard 5.08mm headers.

Spring-cage technology: Stainless steel shrapnel enables quick tool-free wire insertion and provides consistent clamping force, ensuring long-term reliability.

Wide operating temperature: Rated from -40℃ to +105℃, suitable for harsh environmental conditions.

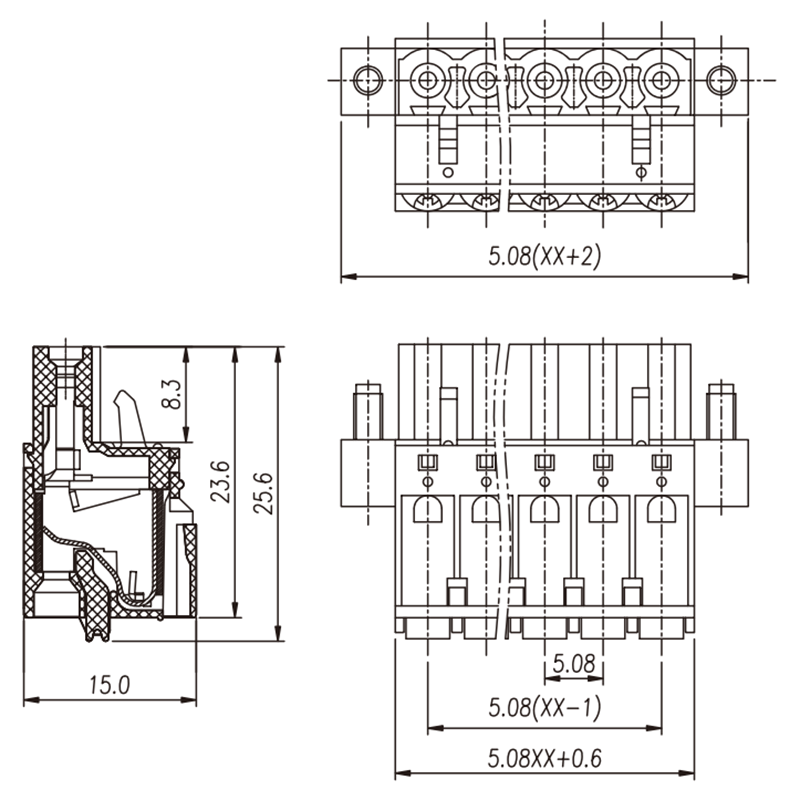

5.08mm Pluggable Terminal Block JL2EDGKDM's Specifications and Dimensions.

OEM & ODM Services

OEM Service
Customers provide product drawings, specifications, or samples, and we manufacture terminal blocks according to their requirements.
OEM support includes: Customized dimensions, Customized materials, Customized branding, Customized packaging, Mass production

ODM Service
Our engineering team provides complete product development support, from initial concept to finished product.
ODM service includes: Product concept development, Structural design, Prototype manufacturing, Mold development, Production launch.

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and we have our own factory.

Q: What is the MOQ?
A: Our MOQ depends on the specific product you choose, generally between 100 and 600 pieces.

Q: How long is your delivery time?
A: It depends on the order quantity and the season you place the order.
The lead time of MOQ is about 7 to 15 days.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the small quantity sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: We accept TT, L/C, Trade Assurance, Paypal, etc.

Q: What is the insulation resistance of this 5.08mm Pluggable Terminal Block JL2EDGKDM?
A: The insulation resistance is 500MΩ minimum at DC500V, ensuring excellent electrical isolation and safety.

Q: What is the current rating of this terminal block?
A: It is rated at 15A under UL standards and 20A under IEC standards, with a voltage rating of 300V (UL) and 450V (IEC).
